DESCRIPTION

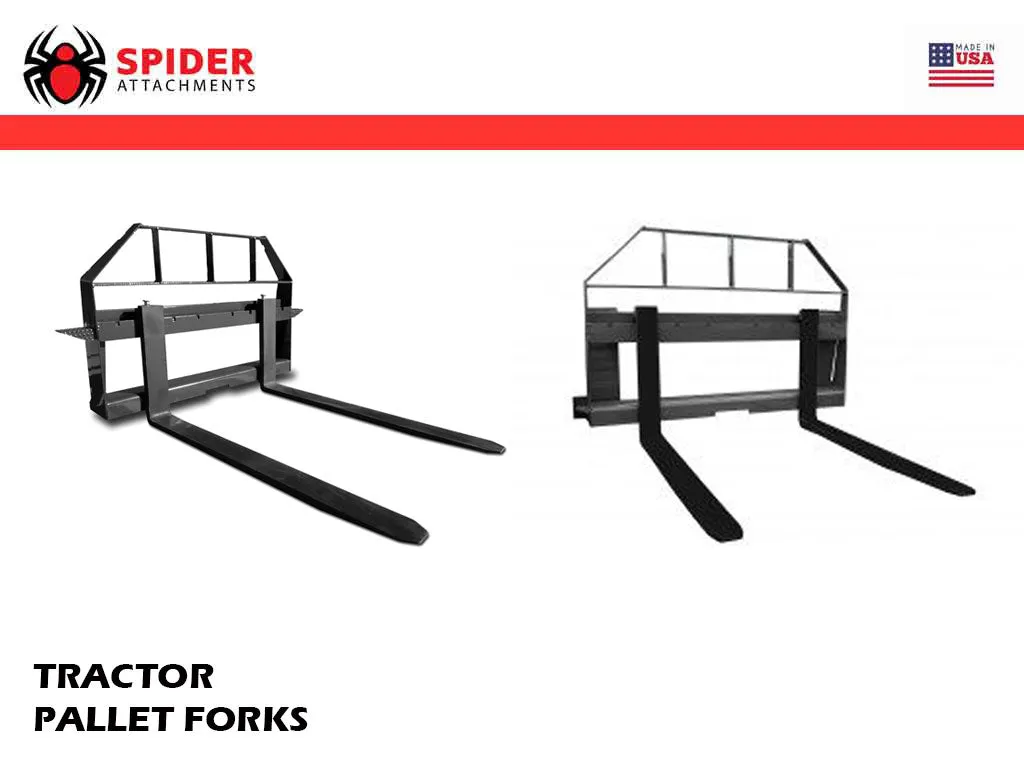

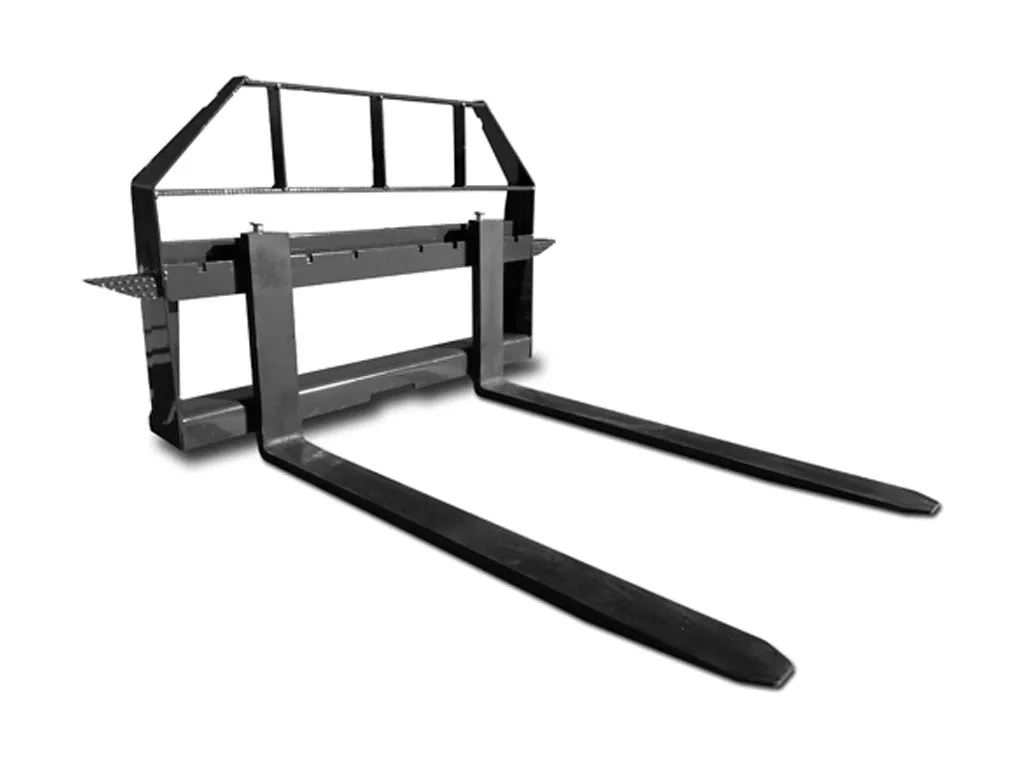

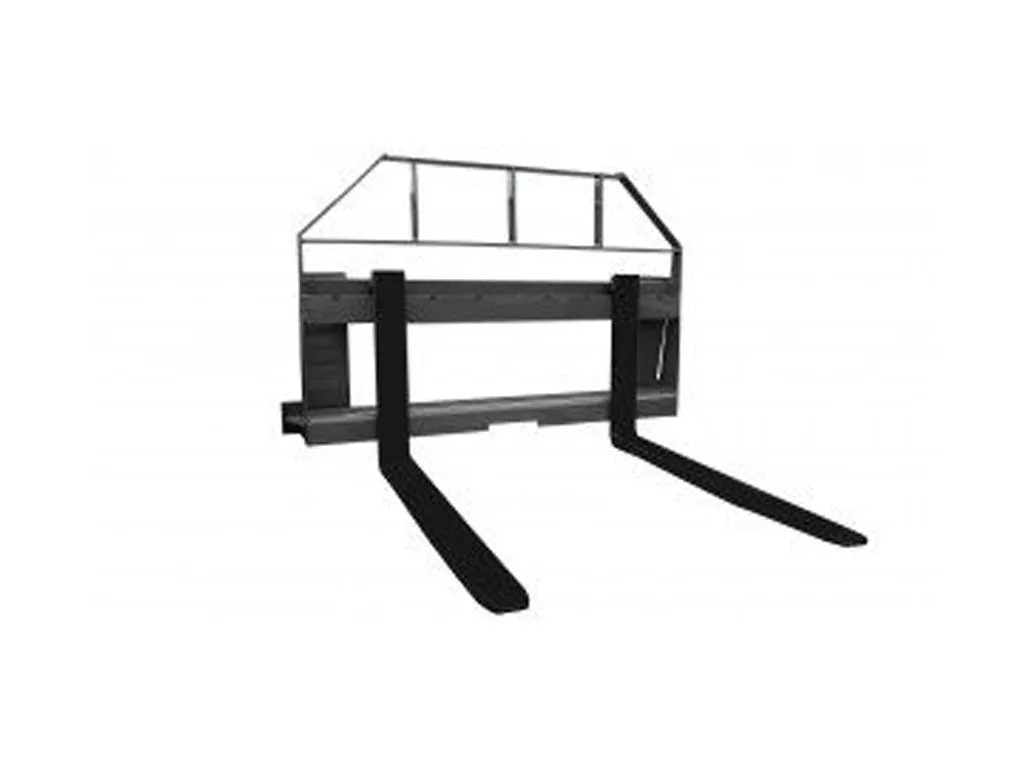

Ideal for machines and compact tractors with limited lifting capacities. Two styles designed to remove additional weight without compromising strength. Universal skid steer mounting.
Extra light - 1000 lbs. load capacity, Uses class 1 forks
- 36"x3" Class 1
- 42"x3" Class 1
Light - 2000 lbs. load capacity, Uses class 2 forks
- 42"x3" Class 2
- 48"x3" Class 2
SPECS
| MODEL |
36" EXTRA LIGHT |
42" EXTRA LIGHT |
42" LIGHT |
48" LIGHT |
| WEIGHT | 350 | 380 | 370 | 450 |
| HEIGHT | 31" | 31" | 31" | 31" |
| WIDTH | 45" | 45" | 45" | 45" |
| DEPTH | 8" | |||
| FRAME LOAD CAPACITY | 1000 lbs. | 2000 lbs. | 2000 lbs. | |
| TINE LENGTH | 36" | 42" | 42" | 48" |
| TINE CLASS | CLASS 1 | CLASS 1 | CLASS 2 | CLASS 2 |
| TINE WIDTH | 3" | |||
| TINE THICKNESS | 1 3/16" | |||
| TINE LOAD CAPACITY |
